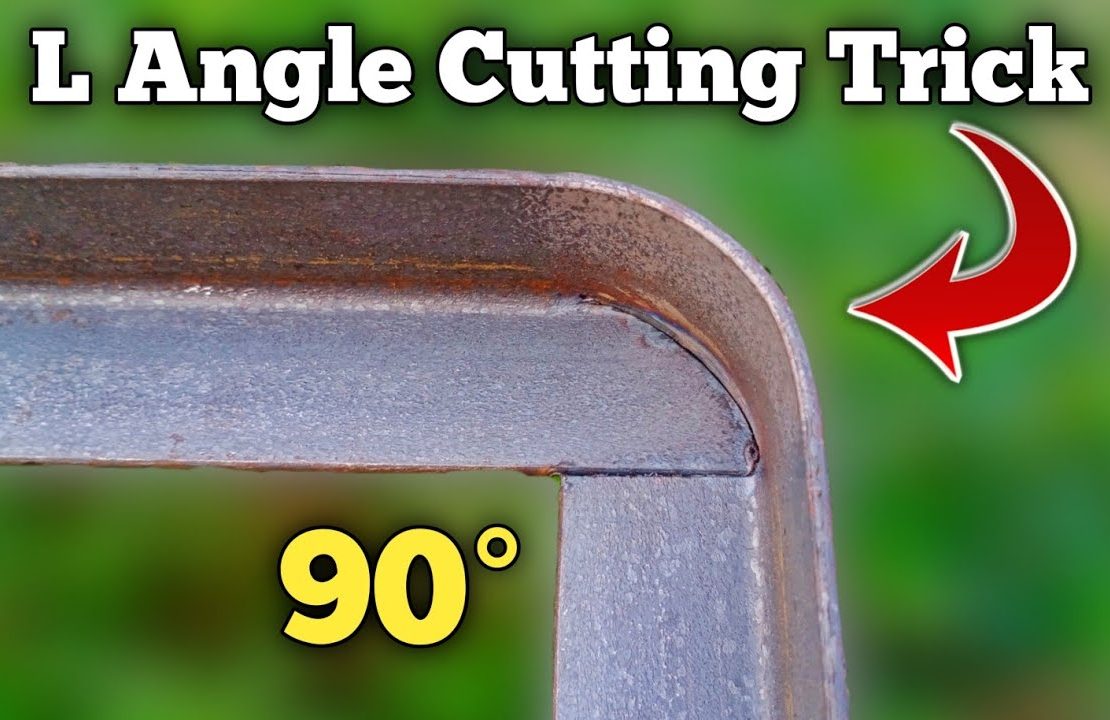

A 90 degree angle bend is a sharp right-angle change in direction made by bending metal, pipe, tube, or rebar. You see it in sheet-metal brackets, copper plumbing elbows, steel reinforcement cages, wire forms, and CNC-bent tubing on bicycles. This guide explains the basic theory, common fabrication tools, material limits, and design tips for making strong and accurate right-angle bends.
Sisällysluettelo
- Understanding a 90 degree bend
- Why the bend angle matters
- Materials that bend to 90 degrees
- Common tools for right-angle bends
- Bend allowance and K-factor basics
- Minimum bend radius chart
- Forming 90 degree pipe elbows
- Setting up a sheet-metal brake
- Key press-brake parameters
- Accuracy tips for tight tolerances
- Strength and springback considerations
- Safety guidelines during bending
- Industry standards and codes
- Usein kysytyt kysymykset
- Summary and next steps
Understanding a 90 degree bend
A right-angle bend changes the path of a part by one quarter of a full circle. The bend has three measurable zones.
- Bend region where the metal flows and thins.
- Inside radius where compression happens.
- Outside radius where stretching happens.
Designers must balance radius, material thickness, and tooling pressure to prevent cracks or wrinkles.
Why the bend angle matters
The tighter the angle, the higher the localized strain. At exactly 90 degrees the neutral axis moves toward the inside radius. Springback also rises because the outer fibers store energy. Tooling must over-bend slightly to counter this rebound.
Materials that bend to 90 degrees
| Material family | Typical thickness range | Bend quality at 90° | Main risk |
|---|---|---|---|
| Mild steel sheet | 0.5 mm to 6 mm | Excellent with proper radius | Edge cracking if radius too small |
| 304 stainless sheet | 0.4 mm to 3 mm | Good but high springback | Työn kovettumista |
| Aluminum 5052 | 0.8 mm to 8 mm | Oikein hyvä | Gall on tooling without lube |
| Copper tube (soft) | 6 mm to 54 mm OD | Good with mandrel | Ovality if unsupported |
| Rebar grade 60 | 10 mm to 32 mm bar | Fair using rebar bender | Crack at inside bar ribs |
Common tools for right-angle bends
- Sheet-metal leaf brake for light gauge parts.
- Press brake with V-dies for plate steel or thick aluminum.
- Roll-bending jig and internal mandrel for tubing.
- Manual conduit hand bender for electrical EMT pipe.
- Rebar bender-cutter for construction steel rods.
Bend allowance and K-factor basics
Bend allowance is the extra material length that wraps around the bend radius. K-factor locates the neutral axis as a percentage of thickness.
| Symbol | Formula or meaning |
|---|---|
| BA | Bend allowance, expressed in millimeters |
| A | Bend angle in degrees (90° in this case) |
| R | Inside bend radius |
| T | Material thickness |
| K | Neutral axis factor from 0.3 to 0.5 |
Bend allowance equation for a 90° bend:
BA = 1.5708 × (R + K × T)
Minimum bend radius chart
| Materiaali | Paksuus | Recommended inside radius |
|---|---|---|
| Mild steel | 3 mm | 3 mm (1 × T) |
| 304 stainless | 2 mm | 4 mm (2 × T) |
| Aluminum 6061-T6 | 4 mm | 12 mm (3 × T) |
| Brass half-hard | 1 mm | 1.5 mm |
| Polycarbonate sheet | 5 mm | Cold bend not advised, heat required |
Forming 90 degree pipe elbows
Piping systems rely on 90° elbows to route fluids around corners. There are three main elbow types.
- Long radius elbow (1.5D centerline).
- Short radius elbow (1D centerline).
- Swept or custom mandrel bend for high flow.
Flow loss chart for steel pipe elbows
Long radius ██ 0.15 K Short radius █████ 0.30 K Sharp mitred ██████████ 0.90 K
Higher K raises pressure drop. Choose smoother elbows for pump efficiency.
Setting up a sheet-metal brake
- Select a radius bar that matches recommended inside radius.
- Clamp the blank with the bend line aligned to the nose bar.
- Lift the leaf until the pointer reads 95° to counter springback.
- Release and check angle with a square.
Key press-brake parameters
| Parametri | Typical value for 3 mm mild steel |
|---|---|
| V-opening | 24 mm (8 × T) |
| Tonnage per meter | 32 kN |
| Bend deduction | 5.2 mm |
Accuracy tips for tight tolerances
- Use back gauges and angle sensors on CNC brakes.
- Measure tool wear and recalibrate radius punches often.
- Keep sheet rolling direction perpendicular to the bend for less cracking in rolled metals.
- Adjust over-bend amount per lot to offset material yield differences.
Strength and springback considerations
Springback depends on yield strength divided by elastic modulus. Stainless and high strength steels rebound more than aluminum. Over-bend by 2–4° for mild steel, 5–8° for 304 stainless, and 8–12° for hardened aluminum.
Text chart: Relative springback amount
Aluminum 6061-T6 ██████████ 304 Stainless ███████ Mild Steel ████ Annealed Copper ██
Safety guidelines during bending
- Wear gloves but keep fingers clear of pinch points.
- Lock out press brakes during tool change.
- Never exceed rated tonnage of hand benders.
- Ventilate fumes when hot bending coated or painted parts.
Industry standards and codes
| Vakio | Scope |
|---|---|
| ASME B31.1 | Power piping bend requirements |
| ANSI/SMACNA | Sheet-metal duct bend gauges |
| AISC Manual | Structural steel bend limits |
| ACI 318 | Rebar bend diameter rules |
Usein kysytyt kysymykset
Can I bend hardened steel to 90° without cracks?
Usually no. You need to anneal or choose a softer grade.
What tolerance is realistic on a manual brake?
Expect plus or minus 1° on angle and 0.5 mm on leg length for low volume work.
Do I need a mandrel for small-diameter tube?
If bend radius is under 2.5 times the tube diameter, use a mandrel to prevent buckling.
Summary and next steps
A successful 90 degree angle bend needs the right radius, accurate allowance, and proper tooling pressure. Choose materials within safe bend limits, select the correct V-die size, and plan for springback. Whether you bend thin sheet, heavy plate, copper pipe, or steel rebar, the principles stay the same: support the inside radius, avoid over-thinning the outer fibers, and always check dimensions after forming. By following the tables and tips in this guide, you can improve part quality, reduce rework, and extend tool life in any workshop or factory.
