Sheet metal laser cutting is a versatile and efficient method used in the manufacturing industry to cut metal sheets with high precision. Whether you’re creating parts for the automotive, aerospace, or custom fabrication industries, laser cutting technology offers numerous benefits. In this article, we’ll explore the laser cutting process, its advantages, materials suited for the technique, and how it compares to other metal cutting methods.
目次
- What Is Sheet Metal Laser Cutting?
- Why Choose Laser Cutting for Sheet Metal?
- Materials Suitable for Laser Cutting
- Applications of Sheet Metal Laser Cutting
- How to Optimize Laser Cutting for Your Manufacturing Needs
- Laser Cutting vs. Other Metal Cutting Methods
- Quality Control in Sheet Metal Laser Cutting
- 結論
- よくあるご質問
What Is Sheet Metal Laser Cutting?
Overview of Laser Cutting Process

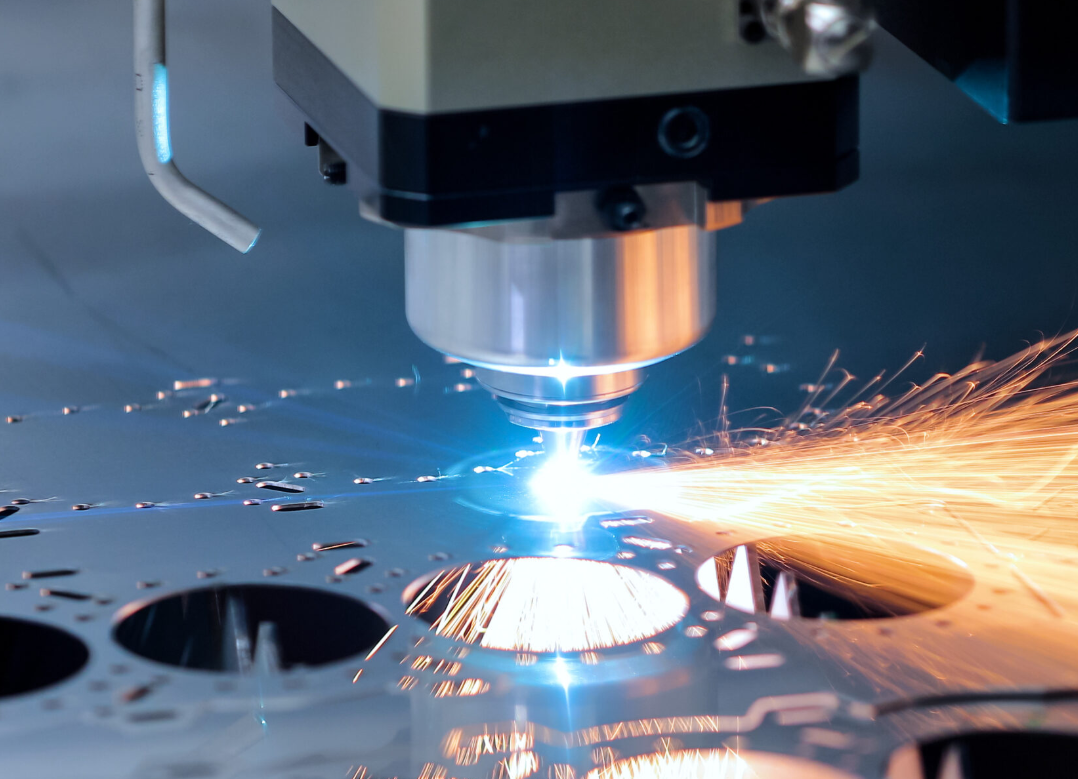

Laser cutting is a process that uses a focused laser beam to cut or engrave metal sheets. The laser beam melts, burns, or vaporizes the material along the cutting line, resulting in clean, precise cuts. This process is widely used in industries requiring accuracy and complex cuts, such as automotive and aerospace.
Types of Laser Cutting Technology
There are two primary types of lasers used in metal cutting: fiber lasers and CO2 lasers. Here’s a comparison:
| Laser Type | メリット | デメリット |
|---|---|---|
| Fiber Laser | High energy efficiency, faster cutting speed, ideal for thin metals like stainless steel and aluminum. | More expensive initial setup costs compared to CO2 lasers. |
| CO2 Laser | Better suited for thicker materials, cost-effective for less demanding applications. | Lower cutting speed and less efficient energy use compared to fiber lasers. |
Why Choose Laser Cutting for Sheet Metal?
Precision and Accuracy
Laser cutting provides exceptional precision, with tolerances as tight as ±0.1mm. This makes it ideal for producing complex parts and custom components where high accuracy is essential.
Clean Edges and Fine Surface Finish
One of the significant benefits of laser cutting is the clean edge it creates with minimal burr formation. This reduces the need for post-processing, making it more cost-effective and efficient.
Cost and Efficiency Benefits
Laser cutting minimizes material waste due to its ability to cut intricate shapes with high precision. It also reduces the time needed for production, allowing for quicker turnaround times and lower manufacturing costs.
Materials Suitable for Laser Cutting
Laser Cutting Steel and Stainless Steel
Steel and stainless steel are commonly cut using laser technology. For steel, fiber lasers are often preferred, while stainless steel can be cut using either fiber or CO2 lasers depending on the thickness of the material.
Laser Cutting Aluminum and Other Metals
Aluminum is a light metal that cuts well with fiber lasers. Other metals like brass, copper, and titanium can also be laser-cut, but their thermal conductivity must be considered, as they may require more power or specialized lasers.
Material Thickness Considerations
The thickness of the material plays a significant role in laser cutting performance. Thin materials, such as sheet metal under 10mm, cut easily and quickly, while thicker metals (e.g., 20mm or more) may require higher-powered lasers to achieve clean cuts.
Applications of Sheet Metal Laser Cutting
Laser Cutting in the Automotive Industry
Laser cutting plays a crucial role in the automotive industry for producing components like body panels, brackets, and chassis parts. The precision of laser cutting ensures that parts meet tight tolerances required for high-performance vehicles.
Aerospace Applications of Laser Cutting
The aerospace industry relies on laser cutting to create complex and lightweight parts such as wing structures, fuselage components, and engine parts. The accuracy of laser cutting is crucial for the safety and reliability of aircraft components.
Laser Cutting for Custom Fabrication
Laser cutting is widely used for producing custom parts and prototypes in industries like electronics, medical devices, and industrial equipment. It enables manufacturers to quickly create parts tailored to specific needs without the high costs associated with traditional manufacturing methods.
How to Optimize Laser Cutting for Your Manufacturing Needs
Optimizing Cutting Speed and Efficiency
To maximize cutting speed while maintaining precision, consider adjusting parameters such as laser power, cutting speed, and gas pressure based on the material thickness and type. Automation in loading and unloading material can also improve throughput.
Reducing Material Waste in Laser Cutting
By using optimized nesting software, manufacturers can arrange parts on the sheet to minimize gaps and reduce material waste. Additionally, scrap material can be recycled for further use, reducing environmental impact.
Choosing the Right Laser Cutting Equipment
When selecting laser cutting equipment, consider factors such as the material types you’ll be cutting, the thickness range, and the desired precision. Higher-power lasers are required for cutting thicker materials, while fiber lasers are often preferred for high-speed cutting of thinner metals.
Laser Cutting vs. Other Metal Cutting Methods
Laser Cutting vs. Plasma Cutting
While both laser cutting and plasma cutting are used for metal fabrication, laser cutting offers greater precision and cleaner cuts, particularly for thinner metals. Plasma cutting, however, is typically more affordable and better suited for thicker materials.
Laser Cutting vs. Waterjet Cutting
Waterjet cutting is ideal for materials that can’t withstand heat, such as composites or heat-sensitive materials. In contrast, laser cutting provides faster and more accurate cuts for metals, although it generates heat, which may not be suitable for certain materials.
Cost Comparison: Laser Cutting vs. Mechanical Cutting
Laser cutting is generally more cost-effective for high-precision jobs and small to medium-sized runs. Mechanical cutting, such as shearing, may be cheaper for large, simple cuts but lacks the versatility and precision of laser cutting.
Quality Control in Sheet Metal Laser Cutting
Maintaining Precision in Every Cut
To maintain precision in every cut, it’s essential to regularly calibrate the laser equipment, monitor laser focus, and optimize machine settings. This ensures that each part meets the required tolerances.
Measuring Surface Roughness and Tolerances
Measuring tools such as profilometers can be used to assess surface roughness. Regular inspections and quality checks during production ensure that parts meet the desired quality standards.
Post-Processing After Laser Cutting
Post-processing steps like deburring, surface polishing, or coating may be required to improve the finish or protect the parts from corrosion after laser cutting.
結論
Sheet metal laser cutting offers numerous advantages, including high precision, clean cuts, and cost efficiency, making it ideal for a wide range of industries. By understanding the capabilities of laser cutting, optimizing processes, and choosing the right equipment, manufacturers can significantly enhance their production efficiency and reduce material waste.
よくあるご質問
What materials can be laser cut?
Common materials for laser cutting include stainless steel, carbon steel, aluminum, copper, brass, and titanium. Non-metals such as plastic and wood can also be cut with lasers, though they require specialized equipment.
How precise is laser cutting?
Laser cutting is highly precise, with tolerances as tight as ±0.1mm, making it ideal for custom parts and intricate designs.
How does laser cutting compare to other cutting methods?
Laser cutting offers better precision and faster cutting speeds than mechanical cutting methods such as shearing or punching, while plasma cutting is more suitable for thicker materials but lacks the fine precision of laser technology.
What are the typical costs of laser cutting?
The cost of laser cutting depends on factors like material type, thickness, and volume. Higher-powered lasers for thick materials or intricate designs tend to be more expensive.
How can I reduce waste when using laser cutting?
By optimizing part layout using nesting software, recycling scrap material, and minimizing gaps between parts, you can significantly reduce waste and improve material efficiency in laser cutting.
